Fiat / Abarth 1.4 Turbo Wossner Forged Pistons and PEC Rods

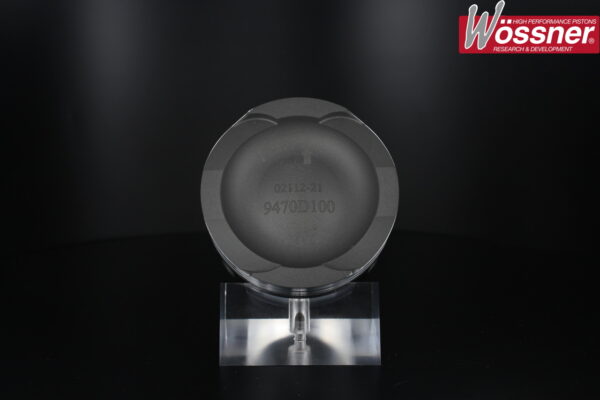

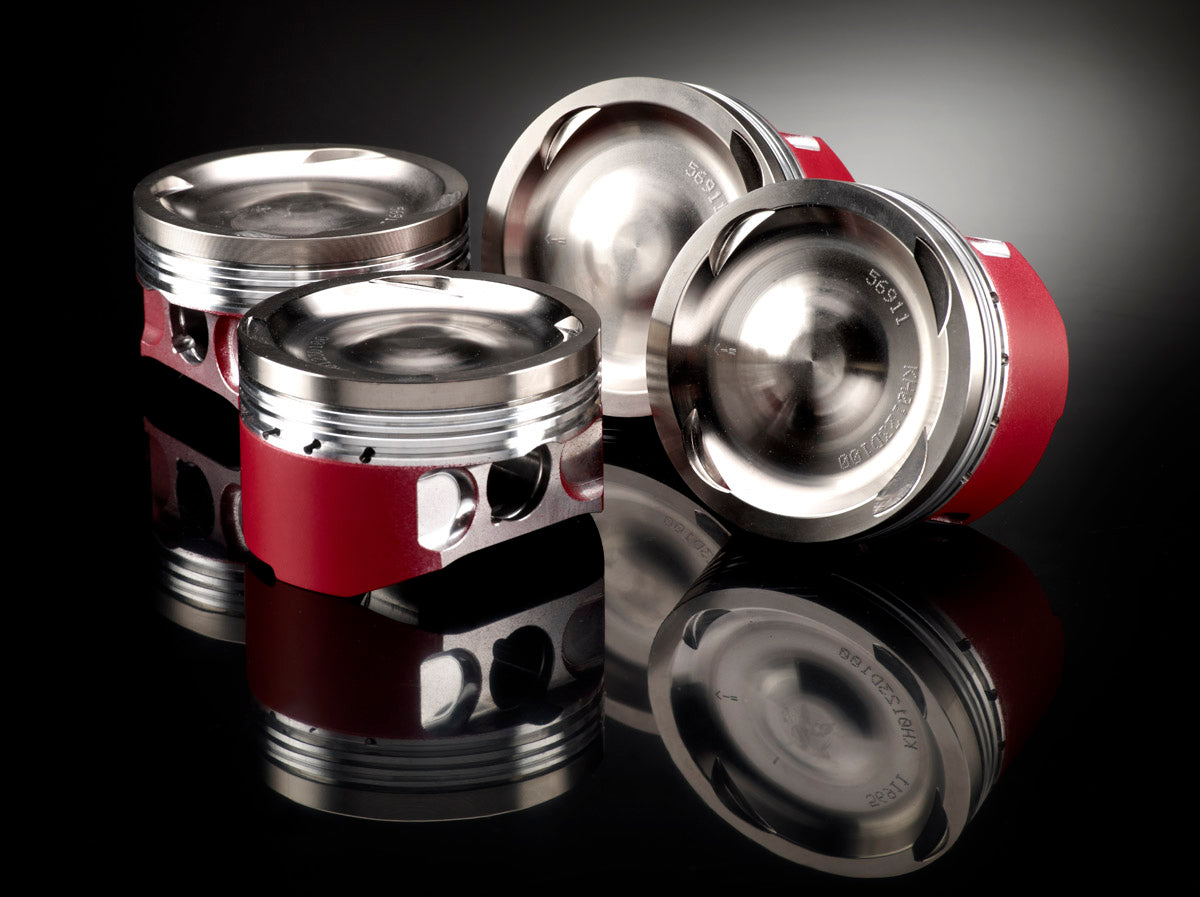

This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent “hot spots” on piston crowns. Price includes all piston rings and gudgeon pins.

PEC's own in house design facilities are able to create many different components but for nearly 10 years now, it's our connecting rods that have helped set us apart from the competition in terms of availability, ease of fitment and size of range.

Manufactured from forgings originally produced in Sweden, PEC connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety engine building problems.

H-Beam and I-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and then shot peened for a higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality ARP fasteners with different specification bolts available depending on the level of performance required.

PEC Connecting rods have been designed, manufactured and tested to the highest levels of scrutiny before being released to the trade and the public alike and their success record speaks for itself.

Part Number K9470-G0308
Engine Type I4 Turbo
OE Bore Size 72.00mm
Bore Sizes Available
72.00mm - 1368.02cc

72.50mm - 1387.09cc

73.00mm - 1406.29cc

Stroke 84mm
Dome/Bowl Volume -20.9cc
Wössner Comp. Ratio
9.8:1

OE Comp. Ratio 9.8:1
Comp. Height 26.8mm
Valves Per Cylinder 4
Cylinders 4
Rod Configuration
H-Beam - G0308

Con Rod Length C/C 129.00mm
Small End Diameter 18.00mm
Small End Width 15.5mm (chamfered)
Big End Diameter 45.13mm
Big End Width 21.7mm
Bolt Specification ARP2000 5/16" Thread

Available in 72mm,72.50mm & 73mm.
